DMX512 wireless receiver/transmitter transmits standard DMX512 protocol data by wireless way, which solve lighting control issues of wireless transmitting completely between lighting controller and lighting, lighting and lighting and so on. It gets rid of relying on connecting cables completely.And also can ensure without any time delay when signal data is transmitting, signal data is real time and reliable. This product adopts global free 2.4GHz ISM frequency band. High effective GFSK modulation,communication design is 126 channels jumping frequency, high anti-jamming ability.
DMX LCD Transmitter

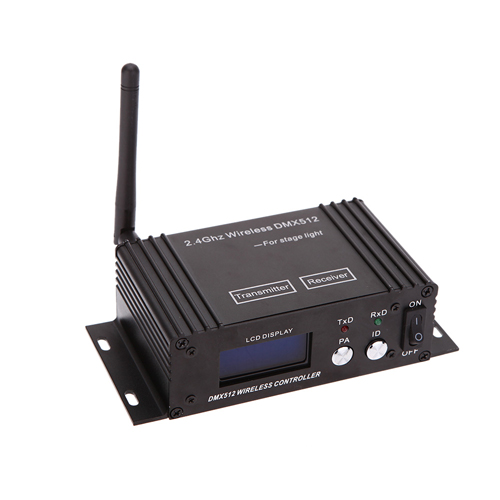

1. Product model: 2.4G DMX512 wireless receiver/transmitter
2. 2X8 bit LCD to display working condition and parameter
3. 4 grade power rate output for option.
4. 126 channels jumping frequency self-moving, self-moving to option non-interfere frequency
5. section, ensuring communication is reliable.
6. 16 groups ID coding for setting, User can use 16 groups individual wireless net without any
7. interfere each other in the same place.
8. Input voltage: 9-12VDC 300MA MIN
9. Communication distance: 400M（visible distance）
10. Working frequency: 2.4G ISM,126 channels
11. Max transmitting power rate: 20dBm
12. Receive sensitive: -94dBm
13. DMX single terminal: 3PIN male-female socket
14. Dimension: 75X147X43 mm.
